Description
The GSDT-FTX-II-1550 forward transmitters are part of a new series in the Excelsior optical transmission platform that will mix with other GSDT-FTX series to integrate into the same GSDT-link Chassis. The module contains a high performance, advanced pre-distortion circuitry achieves superior CSO and CTB, and ideal for broadcast and narrowcast applications. It can provide a wide range of optical output power to deliver both analog and digital signals. All configuration parameters of modules can be monitored by LED screens on the front panel of the module, or by the GSDT-EMS equipment management module.

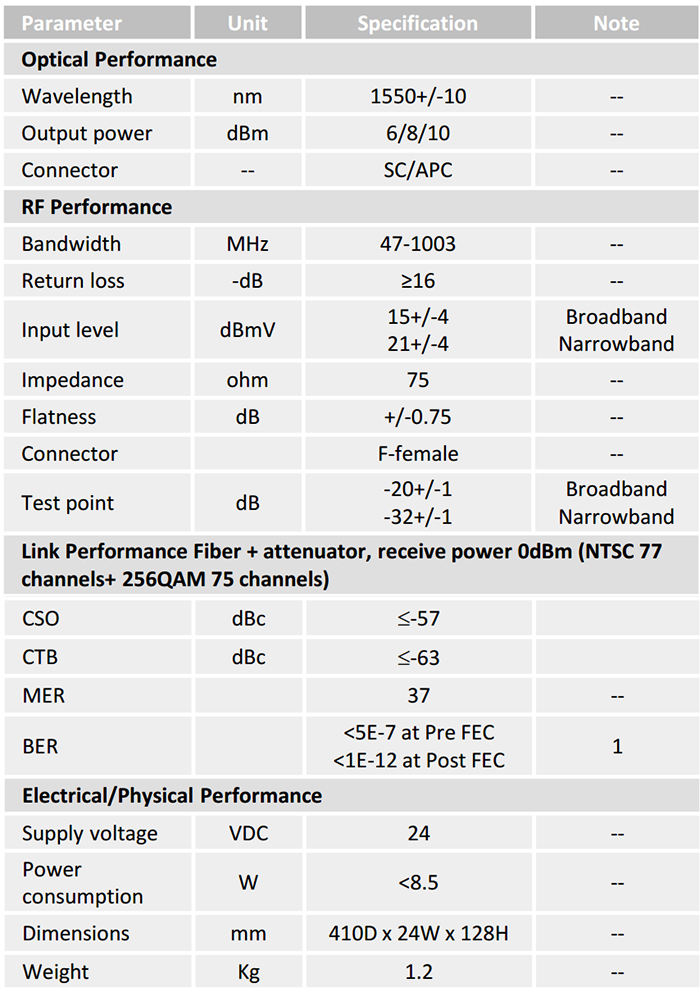

Specifications
1: QAM channels start at 561MHz (center frequency) up to 999MHz center frequency
Features
■ High performance 1550nm DFB laser with super
pre-distortion circuit
■ Wide range of optical output power
■ Hot-swap capability
■ Front panel LEDs indication
■ Automatic/manual gain control (AGC/MGC)
■ Broadband and narrowband input
■ RF input test point
■ Short circuit protection
■ Lower power consumption
■ MGC scope: ±5dB
■ Default OMI setting 3.7%, from -6dB to +4dB
control under AGC setting

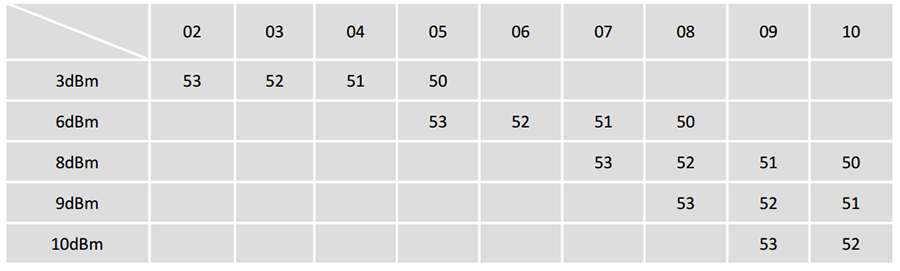

CNR

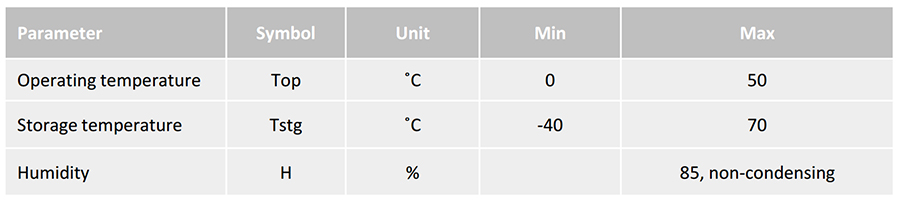

Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are
absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to
absolute maximum ratings for extended periods can adversely affect device reliability.

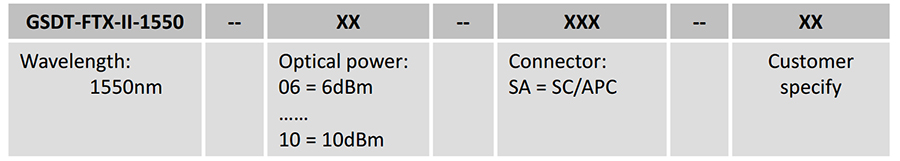

Ordering Information
